Product Detail Page CSY

Basic information

  • in general, product detail pages consist of product widget plugins which are strictly connected to import data based on PIM attributes or hard-coded system terms.
  • it's possible to add editorial elements to the product detail page which aren't updated or changed by the import process
  • PIM information "Web – Product is visible on Website = PIM atr_227776 Yes / No option to signal if product should be imported or not

Examples:



Product Widget - Hero Header

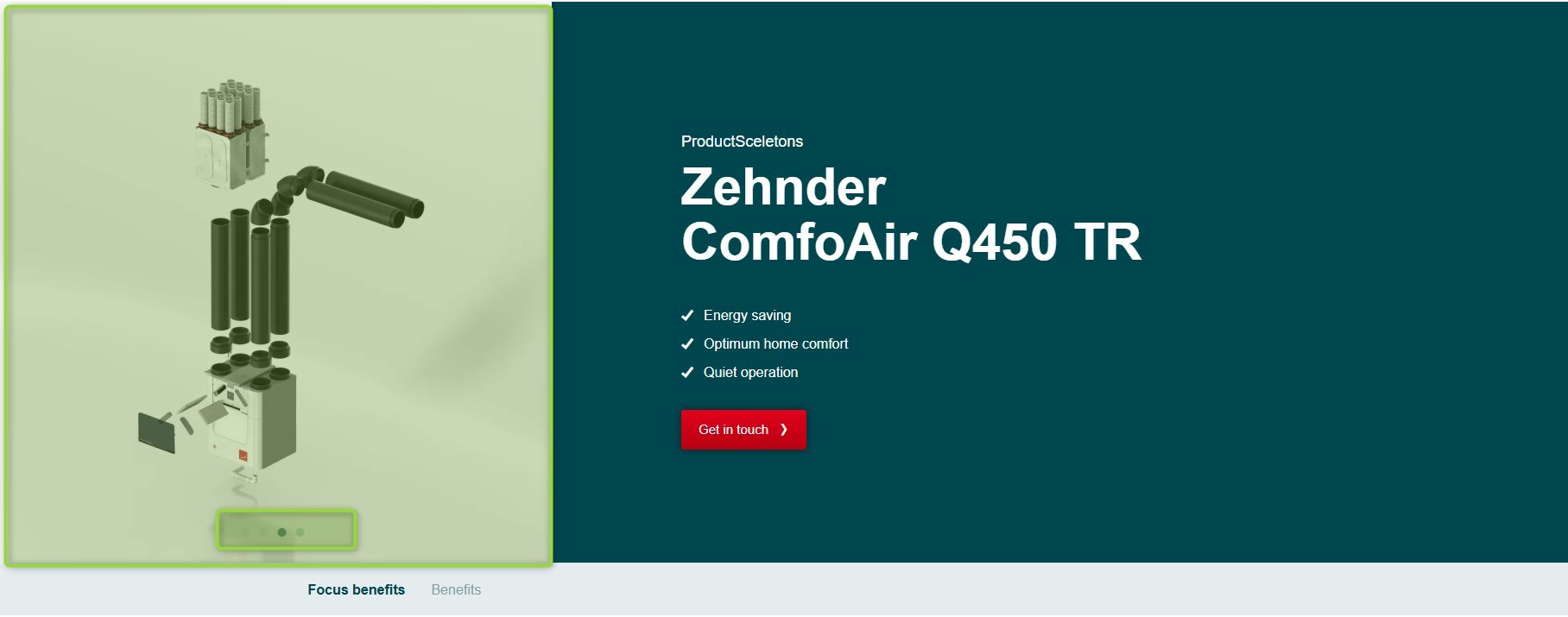

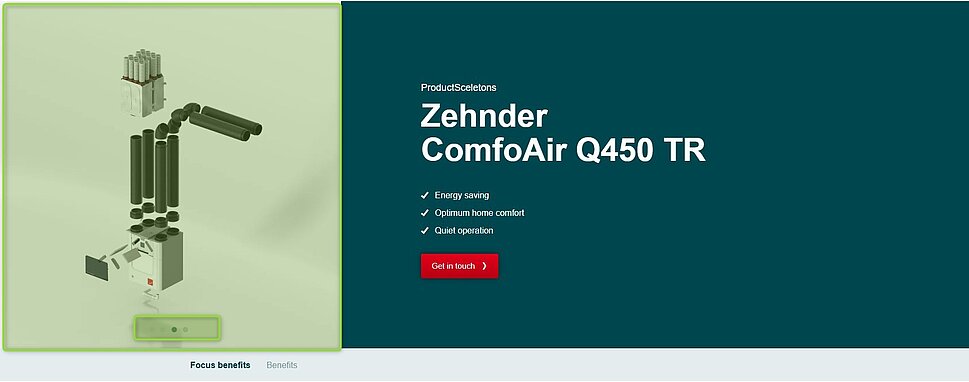

Product Widget - Hero Header - Images

  • Display in maximum the first 4 images of PIM attribute "ref_webGalleryImage"
  • attribute "ref_primaryImageLocal" (if empty then) "ref_primaryImage" is used as  main image

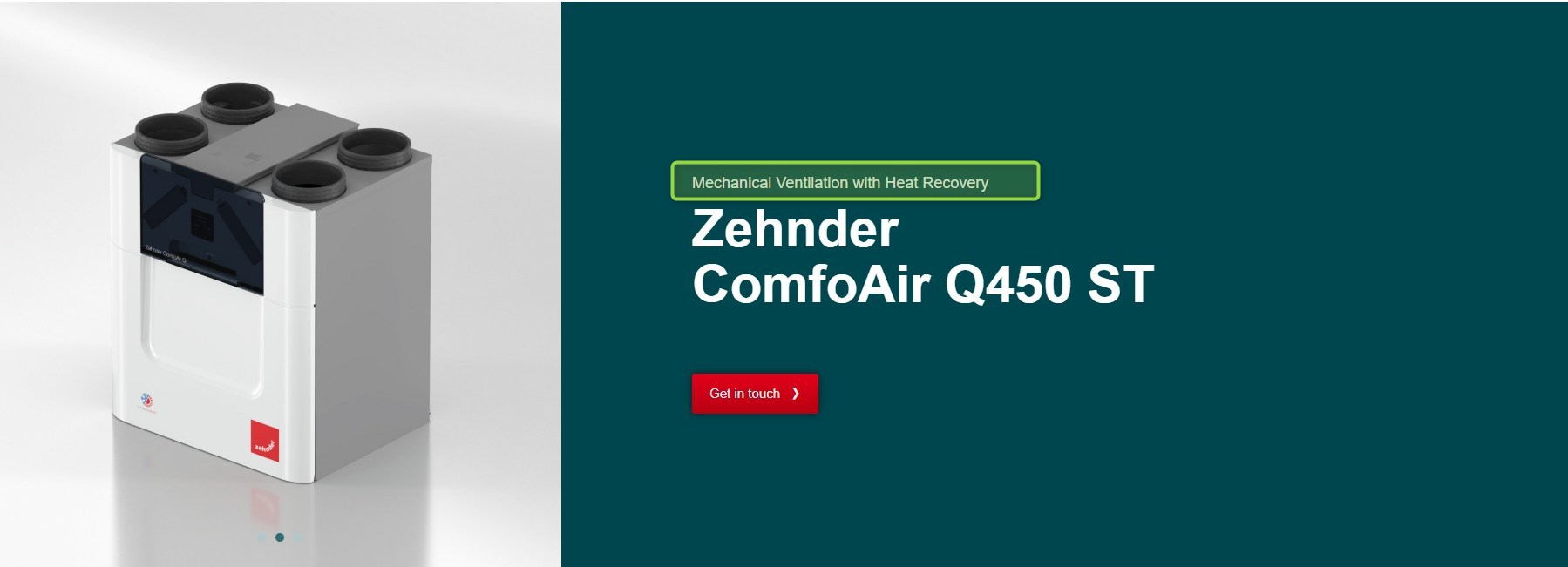

Product Widget - Hero Header - Overline

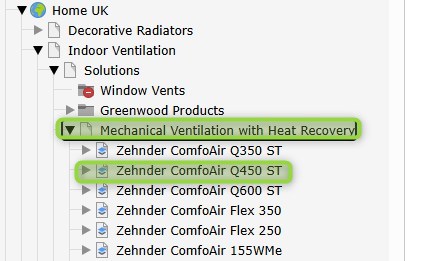

  • in default, it is an automatism which automatically takes the page name of the parent element related the product detail page
  • for specific local use-cases term is configured globally for a country tree and product segment to display the same term for each product related the product segment independent from where the product detail page is located within the typo3 country tree.

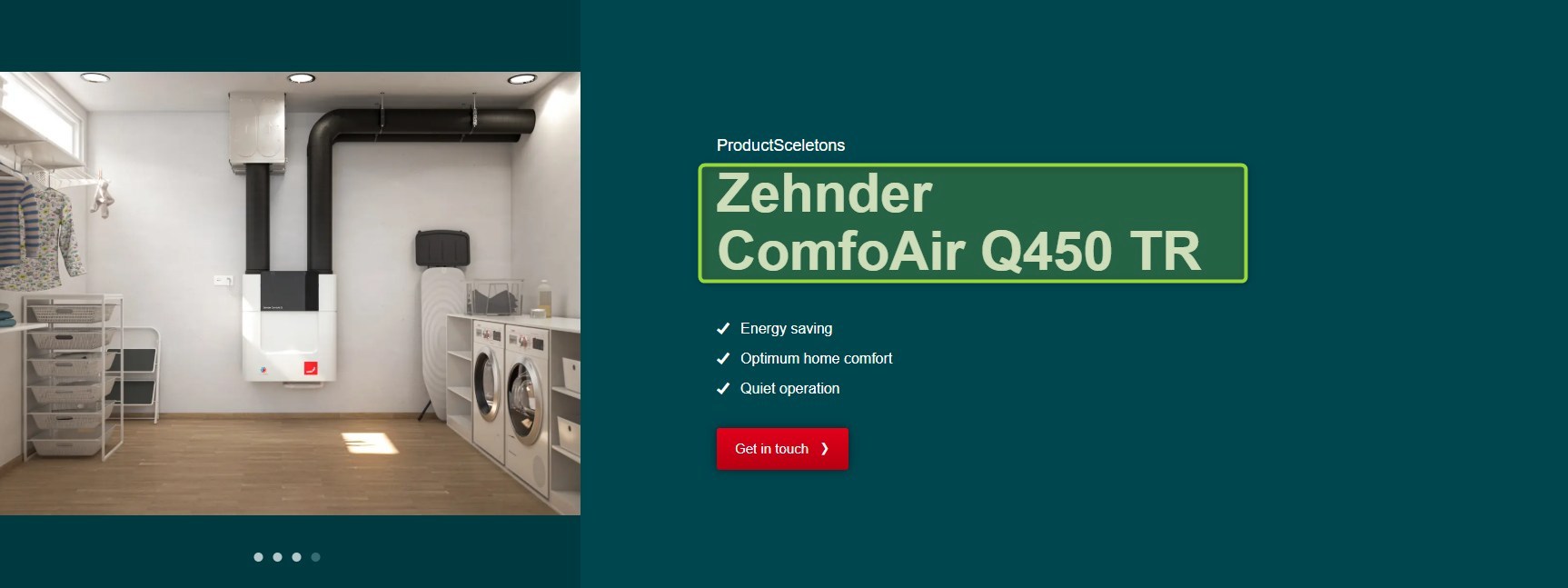

Product Widget - Hero Header - Product Title

  • based on PIM atr_164655 or PIM atr_158871

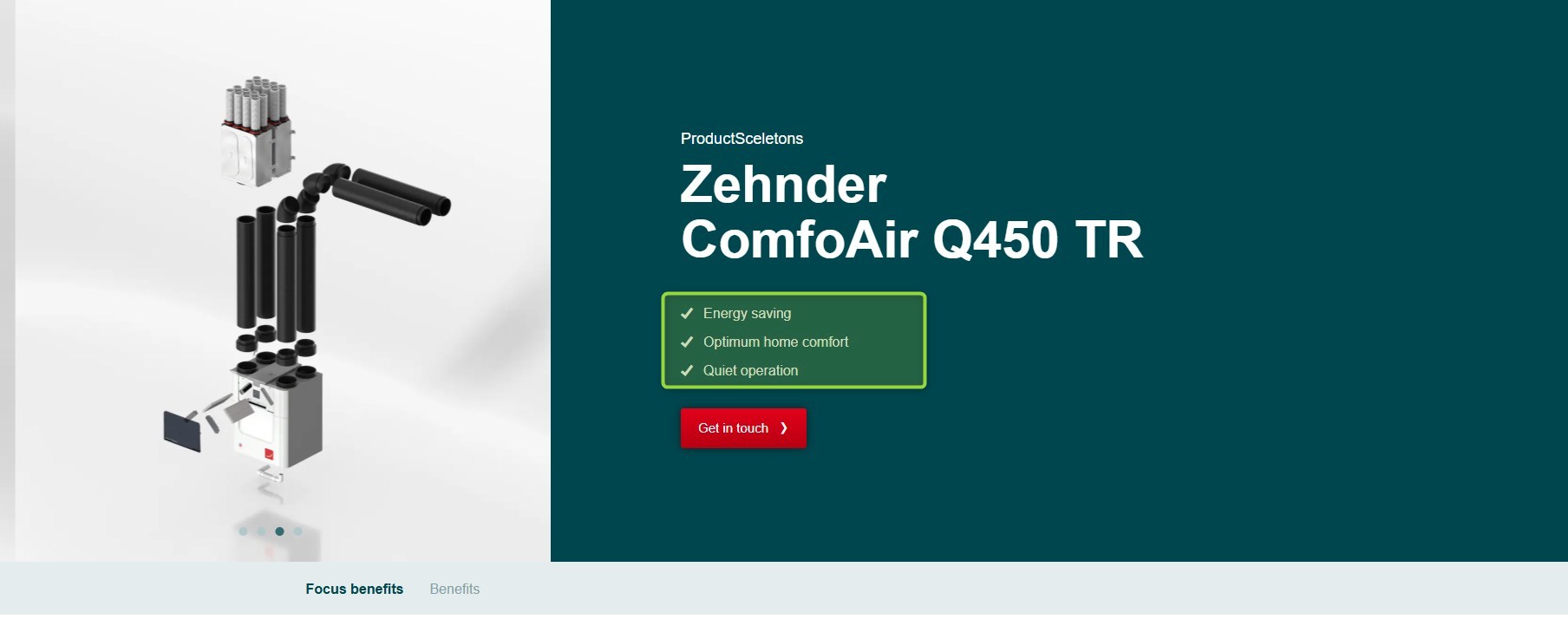

Product Widget - Hero Header - Stage Benefits

  • based on PIM atr_293913
  • max. 3 items

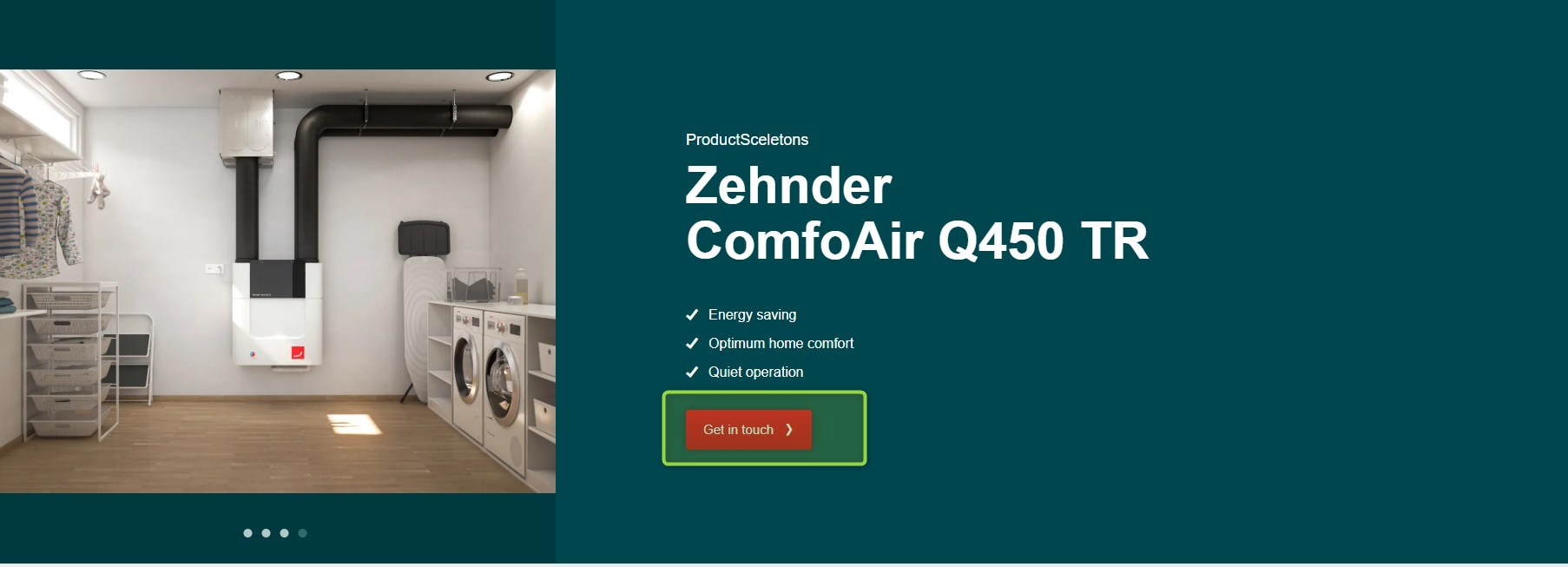

Product Widget - Hero Header - Link Button

  • contact link hard-coded integrated by Typo3 agency, defined by GRM, if possible then maintained as deeplink to product segement related contact form section.

Jump Links / Subnavigation of product detail pages

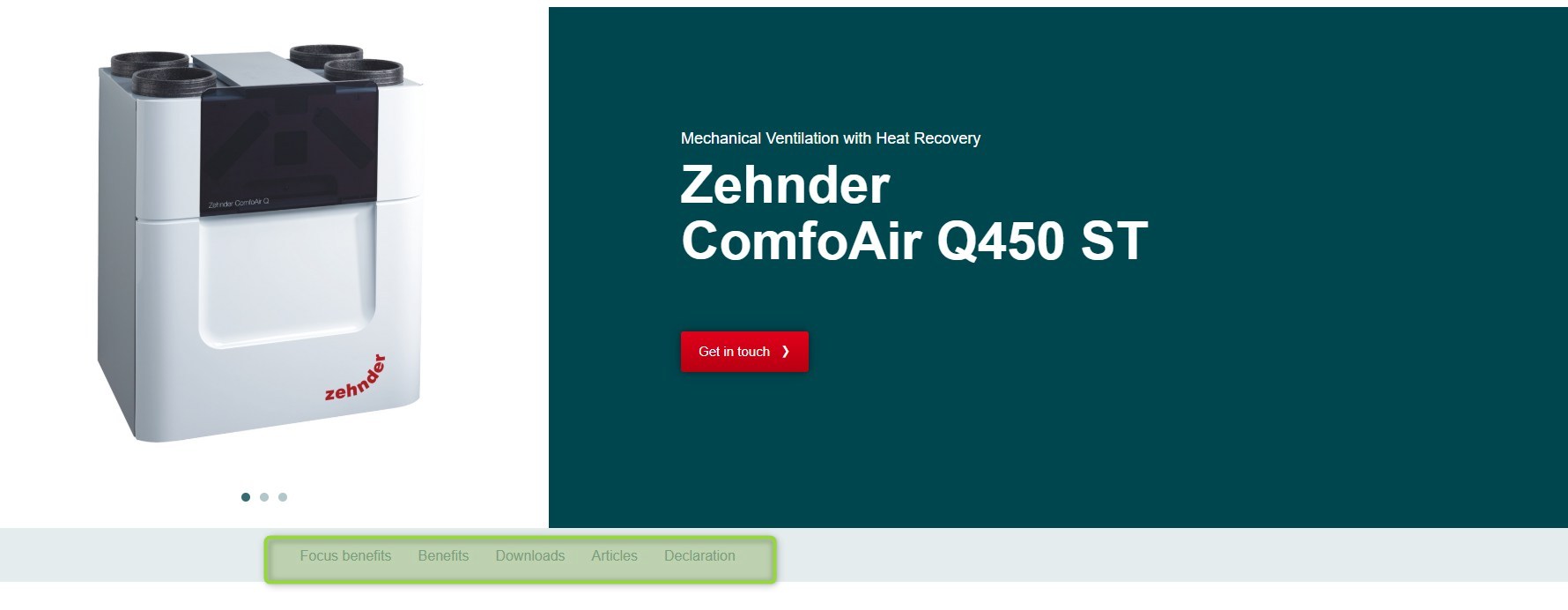

Product Page - Jump links

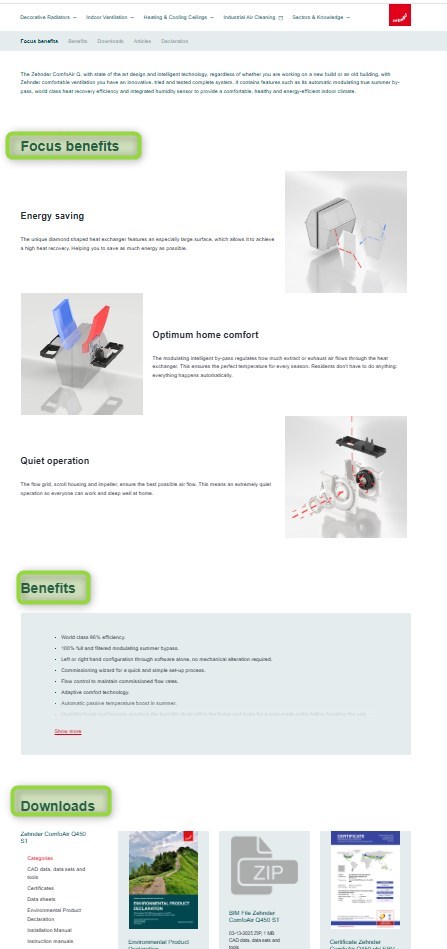

  • based on widget headlines
  • set from a fixed translation table (avenit) when a product page is imported for the first time
  • can be changed manually at a later date per product page or globally by SNOW ticket request to CMS admin and bulk change by agency

Product widget - Description

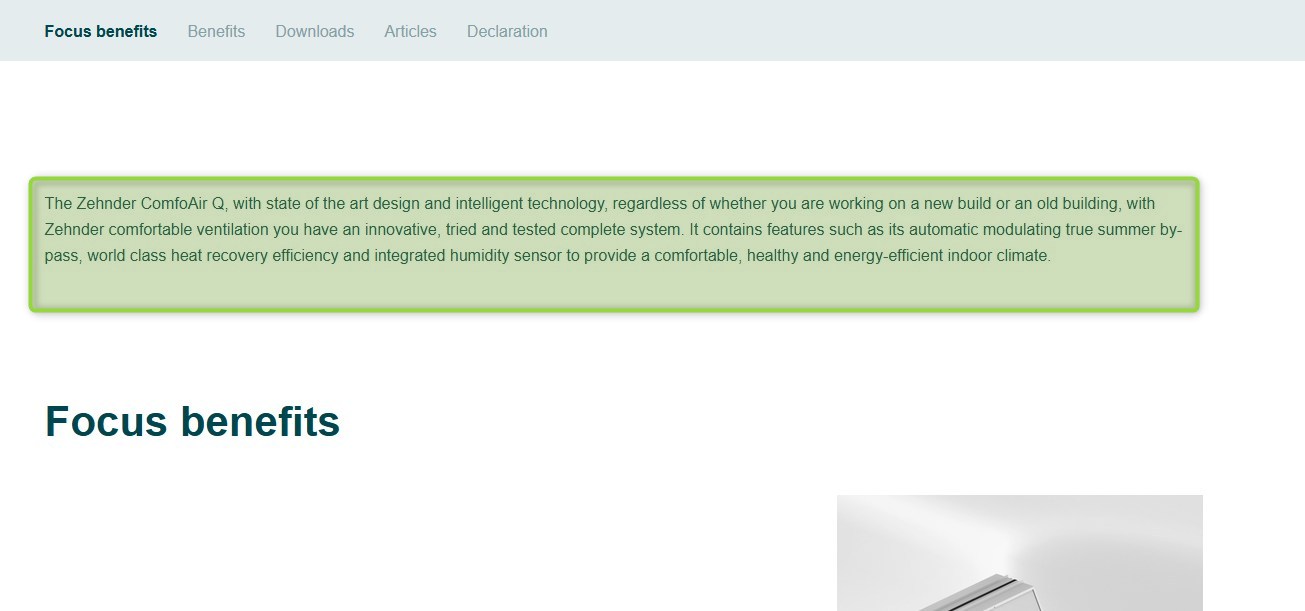

Product Widget - Description

  • based on PIM atr_158160

Product widget - Focus Benefits

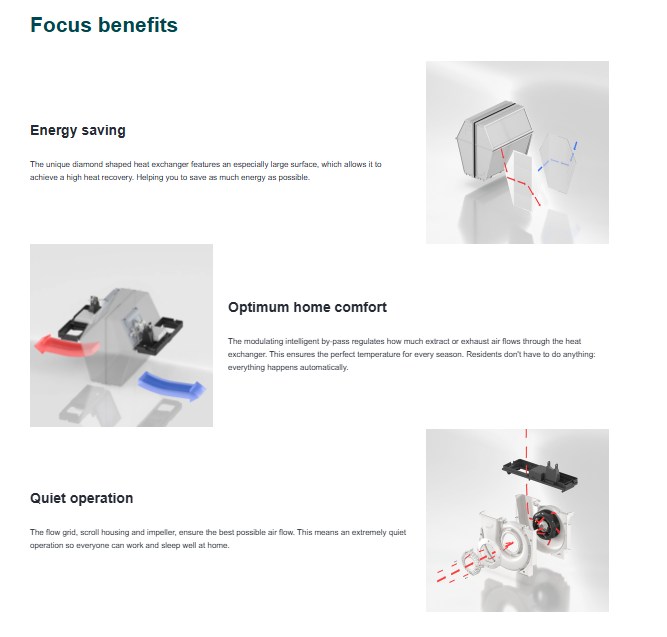

Product Widget - Focus Benefits

  • displayed if a vaild focus benefit item is maintained in PIM
    • PIM attribute ref_product2focusBenefit_global with reference to prd_focusBenefit_xyz
    • items title, teaser and image maintained with valid values
  • limited to max. 3 focus benefits possible per product detail page

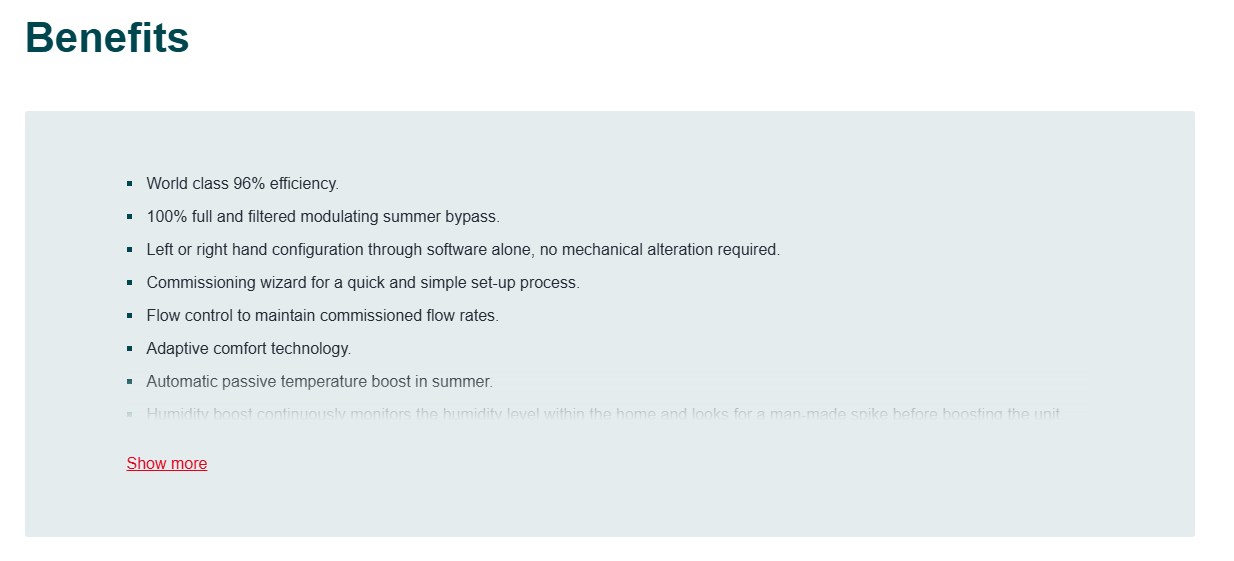

Product widget - Advantages

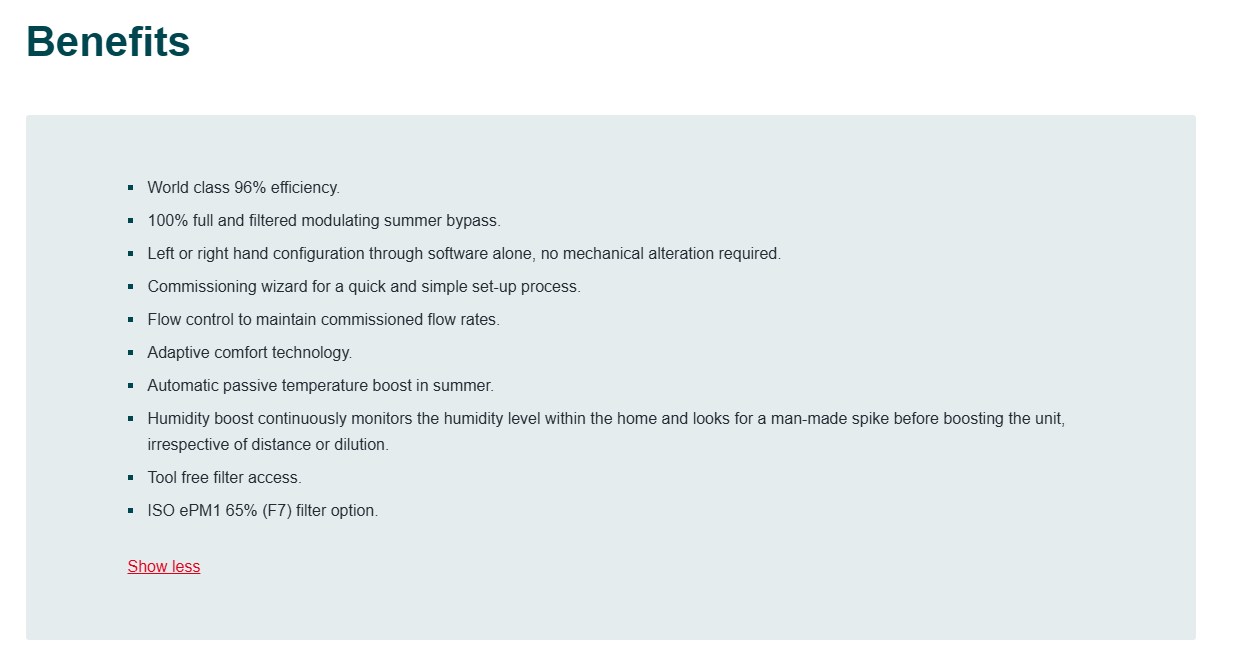

Product Widget - Advantages

is displayed if:

  1. Advantages (PIM atr_158161) or Benefits Local (PIM atr_370271) are maintained
  2. Benefits are maintained for the operating modes:
  • hydronic (PIM atr_227746) and/or hydronic local (PIM atr_374803)
  • electric (PIM atr_227748) and/or electric local (PIM atr_374802)
  • mixed (PIM atr_227749) and/or mixed local (PIM atr_374804)

Product widget - Downloads

Product Widget - Downloads

is displayed if:

  1. downloads (PIM ref_productDownloads) are maintained and/or
  2. datasheets (PIM ref_productDatasheet) are maintained

for related product ID.

  • Categories are directly imported by DAM (picturepark) API.
  • Global definiton which DAM filters to be shown on a product detail page



Product widget - Articles

Product Widget - Articles

widget to be activated and related table to be shown if:

  1. Global activation of article import for the related country tree
  2. articles are available for this tree and
  3. these articles are also maintained to be salable = active ( PIM atr_228038 and PIM atr_297674 = Yes).

The table consists of three elements:

  • article number = PIM atr_158876
  • model code = article webname (atr_158871) or article salesText (atr_158897) or article salesTextshort (atr_167428) or articlename
  • link to article detail page

Product Widget - Declaration of Performance (Energy Labels)

Product Widget - Declaration of Performance (Energy Labels)

  • Displays the energy labels and DOP documents of product-related articles)

Prerequisite:

  • related article needs to be active (PIM atr_228038 and PIM atr_297674 = Yes)
  • EnergyLabel Asset (PIM ref_productEnergyLabel) of the article needs to contain the attribut EnergyLabelClass (PIM atr_167404) with values like A+, A, B, …)
  • EnergyLabels (PIM ref_productEnergyLabel) need to be maintained and active per article  (PIM atr_227614)
  • DOPs (PIM ref_productDopDeclaration) need to be maintained and active (PIM atr_227612)
