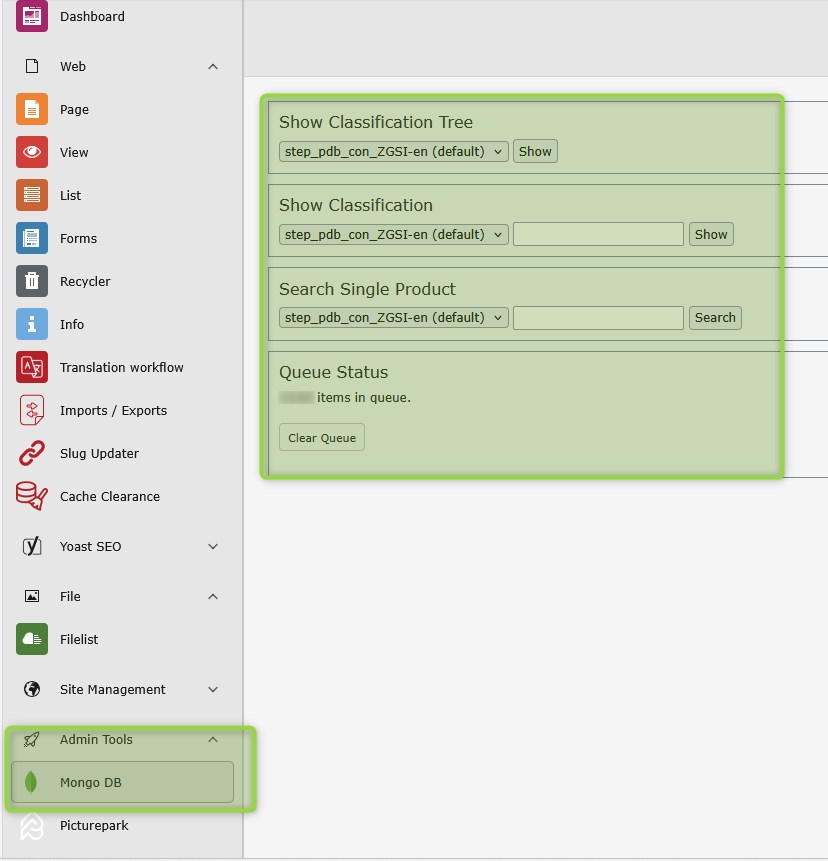

Generic information

  • connected to Typo3 role “Redakteur - Module Mongo"
  • offers possibility to check PIM-based Mongo DB data based on specific attribute IDs
  • Three levels of checks:
    • Classification tree (blue or yellow PIM strucutre reference)
    • Classification (blue or yellow PIM strucutre reference)
    • single product & article (single product or article attributes values)
  • in addition the current “import queue” is shown to display how many items still need to be processed related PIM / DAM import changes.

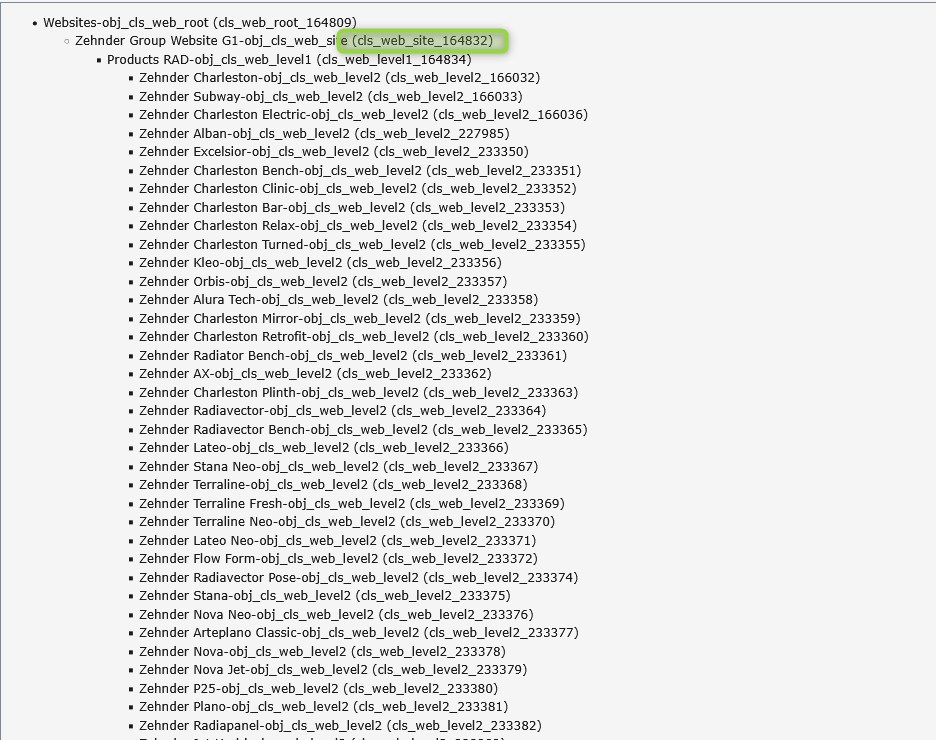

Classification Tree

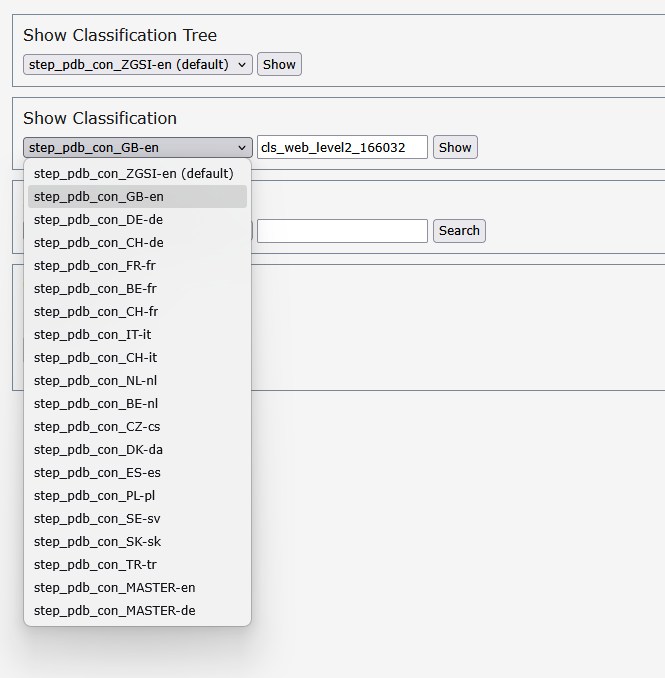

  • In this section classification trees based on selection of one specific PIM “country” can be displayed
  • If a product misses in this overview, then it has no classification in PIM which is mandatory to be imported on the website
  • Classification value looks like this “cls_web_site_164832” and can be copied to the next level of check - the classification details
  • Classification represents the PIM-connected blue or yellow structure

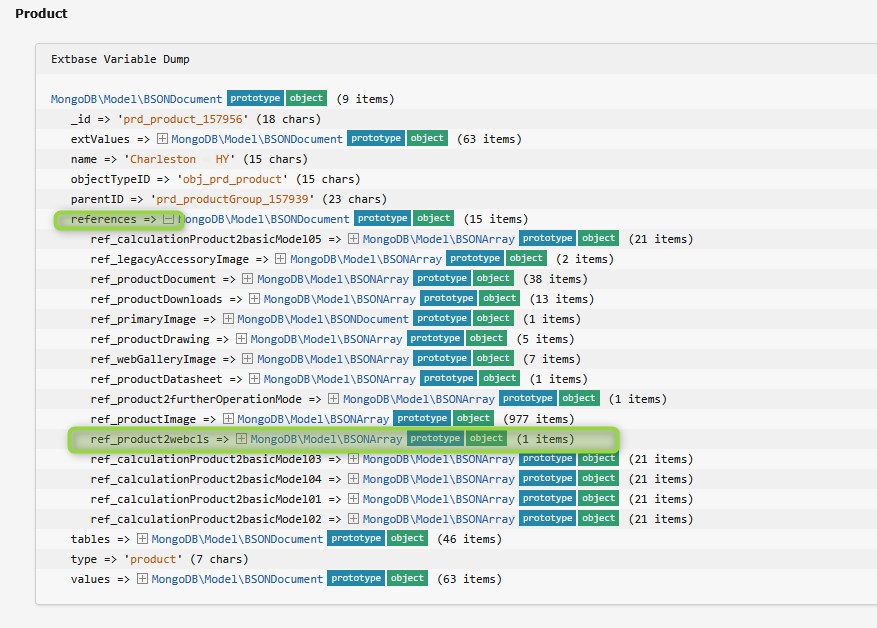

  • it is shown as “reference” value within the values of a single product or article

Classification details

  • as CMS Specialist normally do not have PIM access with the help of this tool we can see the PIM data that has been pushed to the Mongo DB

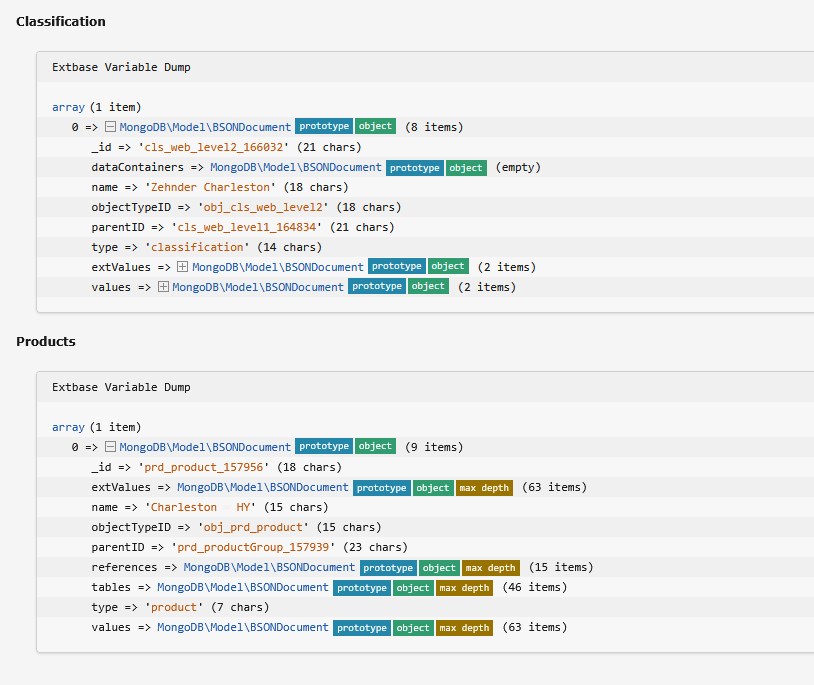

  • Classification details show data related the classification as well as the product connected to a classification ID

product and article details

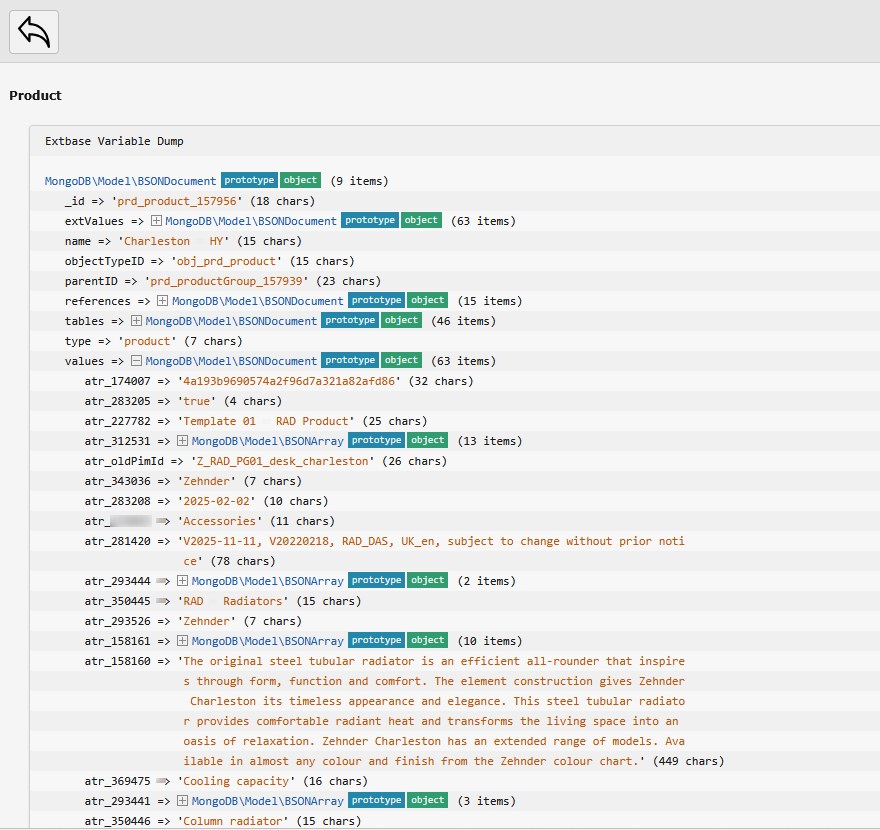

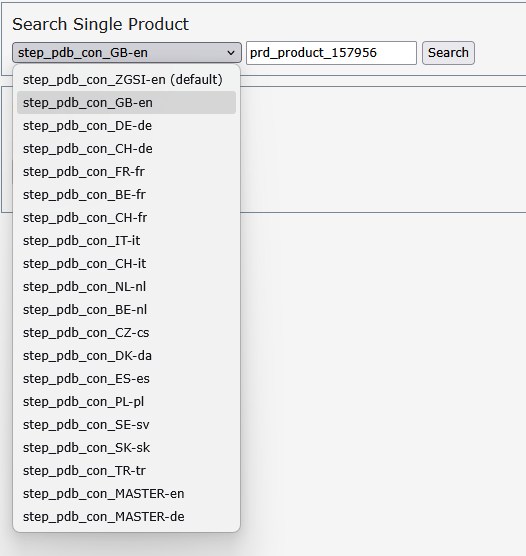

  • based on a specific product or article ID PIM based data in the Mongo DB can be checked for each PIM country
  • possibility to identify if missing data on the website is due to:
    • it isn't yet available in Mongo DB and couldn't be imported
    • it is present in the Mongo DB but waits for the next import process
    • it hasn't been imported because an attribute configuration is wrong
    • everything is OK in Mongo DB so issue is connected to the import process to the website and Typo3 agency needs to be approached

Product information

All product related information and relevant attributes can be found here:

Sandbox product documentation
